[MFC] Setting the width of the dropdown list

출처: http://www.codeproject.com/KB/combobox/combodropwidth.aspx



Introduction

One of the more frustrating aspects of a user interface can be the situation where you are presented with a list of choices in a combobox, but are unable to view the choices because the dropdown list is too narrow.

This article presents an extremely simple CCombobox derived class that will always present a list that is wide enough to hold the widest string.

A new class

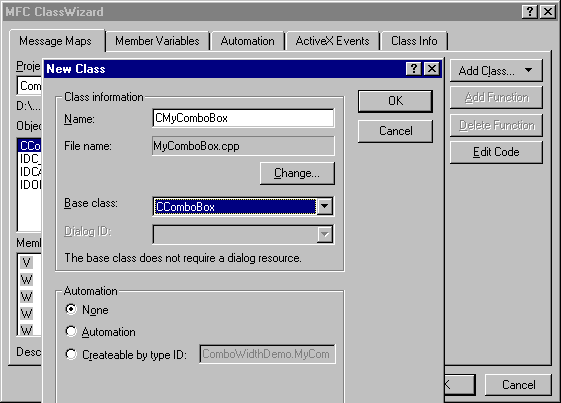

To start we use the ClassWizard to create a new class CMyComboBox derived from CComboBox.

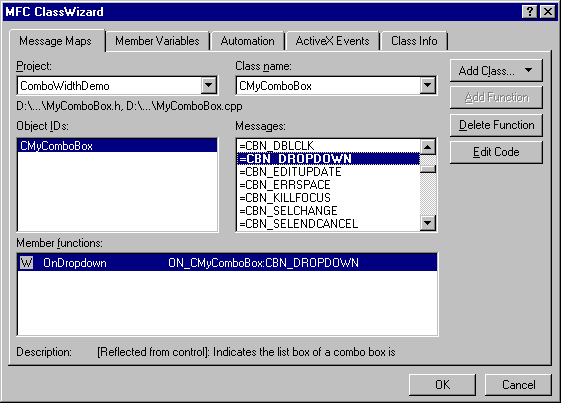

Then use the class wizard to add an override for the reflected message CBN_DROPDOWN. A reflected message is a message that the control sends to its parent, but which the parent lets the control have a chance at processing first. The "=" before the CBN_DROPDOWN in the ClassWizard indicates it's a reflected message.





Call the message handler OnDropDown and add the following code



Collapse Copy Code

void CMyComboBox::OnDropdown()
{
    RecalcDropWidth();
}



Then add the function RecalcDropWidth to your CMyComboBox. What we are doing is that each time the combo displays it's drop down, we are intercepting the message and calling a function to quickly check and the size of the control's dropdown before it gets a chance to display it.



The code for RecalcDropWidth is as follows



Collapse Copy Code

void CMyComboBox::RecalcDropWidth()
{
    // Reset the dropped width
int nNumEntries = GetCount();
    int nWidth = 0;
    CString str;
    CClientDC dc(this);
    int nSave = dc.SaveDC();
    dc.SelectObject(GetFont());
    int nScrollWidth = ::GetSystemMetrics(SM_CXVSCROLL);
    for (int i = 0; i < nNumEntries; i++)
    {
        GetLBText(i, str);
        int nLength = dc.GetTextExtent(str).cx + nScrollWidth;
        nWidth = max(nWidth, nLength);
    }
    // Add margin space to the calculations
    nWidth += dc.GetTextExtent("0").cx;
    dc.RestoreDC(nSave);
    SetDroppedWidth(nWidth);
}

Thanks to Eugeny Berezkin for pointing out that the combo draws its dropdown list with a small margin.

Essentially what we are doing is getting a device context that we can use to calculate the size of each string to be displayed in the combo. We then ensure that we are performing these calculations with the correct font, and then iterate through the list and work out the maximum width. We then add a small margin to replicate the on-screen behaviour of the drop down. once that is done we call CComboBox::SetDroppedWidth to set the new width.

Using the new class

So - we now have a class that does what we want - but how do we use it?

Simple. CMyComboBox is a drop-in replacement for CComboBox. Simply include the MyComboBox.h header file where appropriate, and change your combobox's class from CComboBox to CMyComboBox.

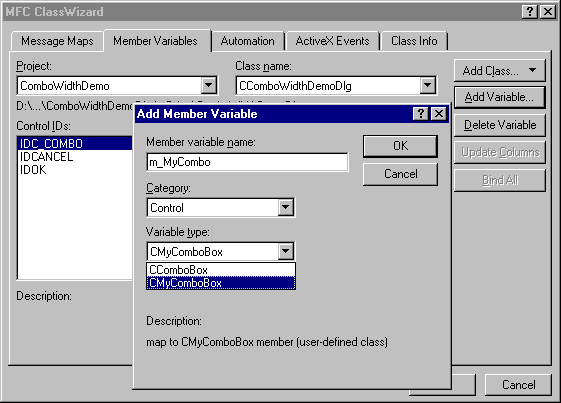

Alternatively, you can use the ClassWizard to associate a variable with your combobox. Go to the Member Variables tab in ClassWizard and select the Form or Dialog class that contains your combobox control. Choose "Add Variable...", specify a name, set the Category as "Control" and then set the variable type as CMyComboBox.





If you used the MyComboBox files from the download files for this article and simply included them in your project without rebuilding the class file (delete the .clw file from your directory and hit Ctrl+W) then CMyComboBox may not appear in the list of available combobox classes. If this happens simply choose CComboBox and then go into your Form or Dialogs header file and manually change CComboBox to CMyComboBox.
